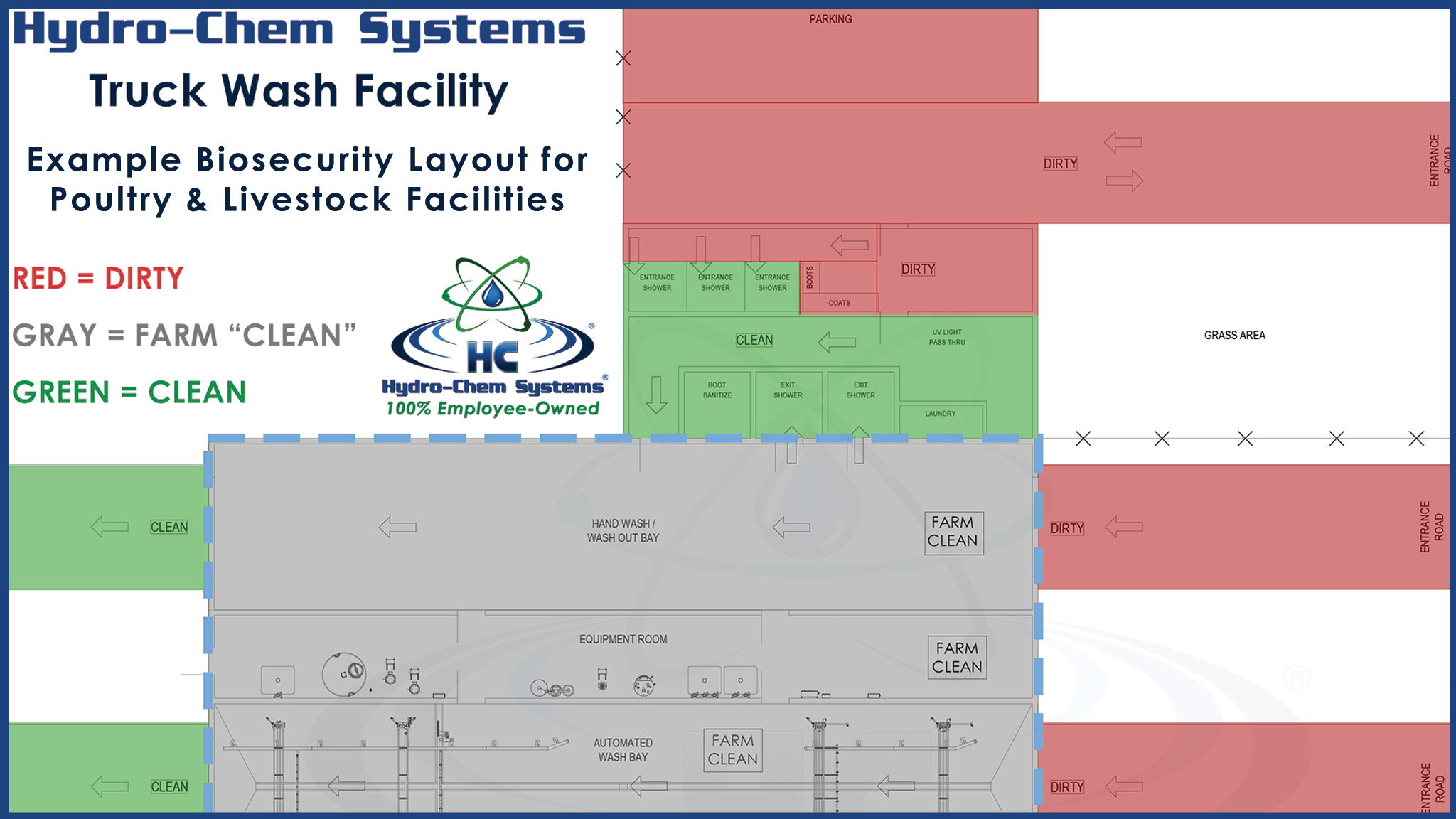

## Biosecurity Washout Layout for Poultry & Livestock Facilities

![ Biosecurity Washout Layout for Poultry & Livestock Facilities](https://blog.hydrochemsystems.com/hubfs/Biosecurity%20Washout%20Layout%20Poultry%20Livestock%20Blog%20header.png)

November 04, 2026

 by [Keith Bailey](https://blog.hydrochemsystems.com/author/keith-bailey)

You can’t control the airspace above your facility. You can control what rolls through your gate, and a biosecurity washout is where that control starts. But a washout only works if the layout around it does.

Since February 2022, HPAI has reached commercial and backyard flocks in every U.S. state. Through July 17, 2026, USDA confirmed HPAI in 2,236 flocks. Those flocks held more than [208 million birds](https://www.congress.gov/crs-product/R48580), lost to infection or culled to stop the spread. Detections run higher in fall and spring, as wild birds migrate.

A biosecurity washout cleans, disinfects, and dries every vehicle before it crosses your Line of Separation. Where you put it, and how traffic moves around it, decides whether it works.

Biosecurity is everything you do to keep disease away from your animals, people, and property. For everyday examples, see [biosecurity measures for fleet managers](https://blog.hydrochemsystems.com/simple-biosecurity).

The [USDA’s Animal and Plant Health Inspection Service](https://www.aphis.usda.gov/livestock-poultry-disease/avian/defend-the-flock) splits biosecurity into two categories. Structural covers the physical side: buildings, fences, wash bays, and how they’re maintained. Operational covers the people side: the rules and routines everyone on site follows.

This post covers the structural side, one layer at a time:

- [Truck Wash Facility](https://blog.hydrochemsystems.com/biosecurity-wash-facility-layout#TW1)
- [Full Facility](https://blog.hydrochemsystems.com/biosecurity-wash-facility-layout#FF2)
- [Multiple Facilities Nearby](https://blog.hydrochemsystems.com/biosecurity-wash-facility-layout#MF)

By the end, you’ll be able to build a plan your vet will back, with clear zones and a clean path for every truck.

## Draw Your Line of Separation First

Federal Secure Supply plans for pork, beef, poultry, and dairy build biosecurity in two rings. The outer ring is the Perimeter Buffer Area (PBA), and any vehicle crossing it needs cleaning and disinfection. The inner ring is the Line of Separation (LOS), which is the final layer of protection around your animals.

Your LOS doesn’t need to be fancy. Even a red line painted on the floor beats no line at all. What matters is that everyone on site knows where it is and what it takes to cross it.

The Red, Gray, and Green zones below show what that line looks like inside a wash facility. The truck wash is the access point for vehicles. The shower is the access point for people.

## Truck Wash Facility Biosecurity Layout

A biosecurity truck wash needs careful design from day one to control cross-contamination.

That starts with physical controls: fencing, barricades, walls, showers, clean clothes on site, and proper disinfection equipment. Then it takes strict rules, so the site stays secure and no one gets complacent.

### Color-Code the Floor

One of the best ways to illustrate the proper flow is by color-coding the interior floors.

- **Red** is dirty. Assume it’s contaminated.
- **Gray** is “Farm Clean.” Only people who have fully washed in work here. Trucks enter dirty but are cleaned and sanitized before they leave.
- **Green** is clean.

Any path to a Green area is through a shower or through a truck wash. A person should never travel from Red or Gray to Green without passing through a shower. A vehicle should never travel from Red or Gray to Green without passing through the truck wash.

### Keep Wash Water on the Dirty Side

Everything you wash off a truck ends up in the drain. That water carries the same pathogens you’re working to stop. Floors and drains should move wash water away from the Green area, never toward it.

[Secure Beef Supply plan templates](https://agriculture.ks.gov/home/showpublisheddocument/1572/638452588576470000) require that effluent from the cleaning and disinfection station follows all state and local regulations. Check yours before you pour concrete.

See an example truck wash facility layout below:

![Truck Wash Facility Example](https://blog.hydrochemsystems.com/hs-fs/hubfs/Truck%20Wash%20Facility%20Example.png?width=723&height=610&name=Truck%20Wash%20Facility%20Example.png)

---

**Get the Red/Gray/Green Zone Diagram**

Print it for the wash bay, the driver break room, or your next walkthrough with your flock vet.

[Download the Diagram](https://blog.hydrochemsystems.com/hubfs/Biosecurity%20Example%20Layouts.pdf)

## Full Facility Biosecurity Layout

Your first line of defense at your feed mill (or other similar facility) is limiting the flow of traffic in and out of the mill. You can do this by creating one-way roads and building proper fencing.



Every vehicle should use one marked entrance and leave through one marked exit. Clean trucks then never share a lane with dirty ones. [Secure Beef Supply plans](https://agriculture.ks.gov/home/showpublisheddocument/1572/638452588576470000) require that vehicles crossing LOS access points are cleaned to remove visible contamination, then disinfected at the cleaning and disinfection station.



State examples map the LOS, its access points, the vehicle cleaning and disinfection station, and the personnel parking area on one premises map. Visitor and employee cars park outside the line. Your wash then serves only the trucks that have to cross, like feed, live haul, and rendering.



See an example biosecurity layout for the full facility below:



![Biosecurity Full Facility](https://blog.hydrochemsystems.com/hs-fs/hubfs/Biosecurity%20Full%20Facility.png?width=723&height=527&name=Biosecurity%20Full%20Facility.png)

## Multiple Facility Biosecurity Layout

Some vehicles, like feed trucks, travel farm to farm. Any site they visit needs one-way entrances and exits to cut the chance of contamination.

Feed trucks often visit the mill several times a day before heading to other farms. Each trip is a chance to carry disease from one site to the next. Every point where those paths cross should be secured and monitored.

A second area of control is nearby farms. Each should have a spot at the entrance to sanitize every vehicle coming on site. It should also have separate entrances and exits.

See an example biosecurity layout for multiple facilities below:

![Multiple Facilities](https://blog.hydrochemsystems.com/hs-fs/hubfs/Multiple%20Facilities.png?width=723&height=464&name=Multiple%20Facilities.png)



## What It Costs to Get the Layout Wrong

A layout mistake doesn’t stay on paper. Fixing it after the concrete is poured means paying to design and build twice. Until it’s fixed, trucks keep crossing your line in the wrong places.

It can also cost you federal support. Under a[USDA rule effective December 31, 2024](https://www.federalregister.gov/documents/2024/12/31/2024-31384/payment-of-indemnity-and-compensation-for-highly-pathogenic-avian-influenza), a poultry farm that’s had HPAI must pass a biosecurity audit before restocking. Otherwise, the new birds aren’t eligible for indemnity. Farms in the buffer zone around an outbreak face the same audit before moving poultry in.

Those audits look at how your site actually works. USDA found paper-based audits didn’t always show how well a farm practiced biosecurity. So the rule calls for visual audits, done virtually or in person.

Skip the fixes an audit recommends, and the farm loses indemnity eligibility if it’s infected again in the same outbreak.

Repeat infections are the costly ones. USDA counted 67 commercial premises with at least two HPAI infections in the current outbreak. Those reinfected farms had received over $365 million of the nearly $1.1 billion in indemnity paid out as of late 2024.

A layout that clearly separates dirty from clean gives an auditor something to see. It also gives every driver one right way through.

## When It’s Time to Add a Washout

The question often comes up at a specific moment. HPAI is confirmed nearby, or a vet or auditor flags how trucks move through your yard. Either way, you need to know what has to get clean and how much system it takes.

Start with the whole vehicle, not just the trailer. That includes the [undercarriage](https://hydrochemsystems.com/automated-truck-systems/undercarriage-only/), wheels, chassis, and tractor, the parts a quick rinse tends to miss.

Then match the system to your traffic. Some sites need a full [biosecurity wash system](https://hydrochemsystems.com/automated-truck-systems/biosecurity-wash/) that cleans each vehicle before applying an [EPA-registered sanitizer](https://hydrochemsystems.com/chemicals/specialty-fleet-products/fleet-quat-pure-guard/). Others only need a sanitizer-only pass. Fleet Quat and Pure Guard are registered in eight states, so check availability in yours.

Next, list every vehicle that crosses your Line of Separation: feed trucks, poultry and hog haulers, fuel trucks, dump trucks, and personal vehicles. That list tells you how much wash capacity you need.

Hydro-Chem Systems designs biosecurity washes around your layout and your traffic.

[\[See How a Biosecurity Wash Fits Your Site\]](https://hydrochemsystems.com/automated-truck-systems/biosecurity-wash/)

## Keep Reading

- Building daily habits? [Biosecurity Measures for Fleet Managers, Made Simple](https://blog.hydrochemsystems.com/simple-biosecurity) covers the everyday measures that keep trucks from carrying disease.
- Sizing a system? [How a Biosecurity Wash System Works](https://hydrochemsystems.com/automated-truck-systems/biosecurity-wash/) explains how an automated wash cleans and sanitizes each vehicle.

Not sure yet? Grab the Red/Gray/Green zone diagram, walk your site, and mark every spot where a truck crosses your line.
